Rapidcut 12
PROYECSA pneumatic cutter for wire and steel. Operated by compressed air, it cuts 1/2″ prestressing strand (7×4ø) and Ø12 mm in steel up to 70 kg/mm², at 20 cuts/minute. Weight only 10 kg.
Also available in versions: 12L, 12HD, 12LHD (HD versions cut Ø12 up to 100 kg/mm²).

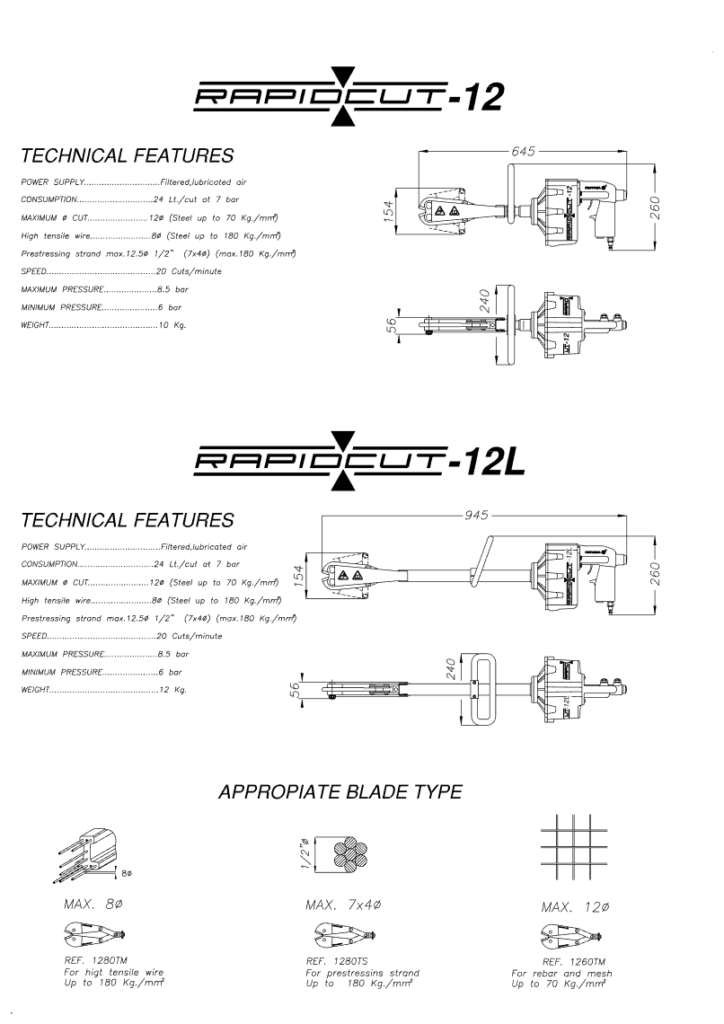

Technical sheet: official PROYECSA technical sheet (PDF)
Additional information
| WEIGHT | 10kg |
|---|---|
| CUTTING CAPACITY | MAX.: 1/2″ (7×4ø braid for prestressing) and 12ø in steel up to 70 Kg./mm² |
| CUTTING SPEED | 20 cuts per minute |
| NECESSARY PRESSURE | From 6 to 8.5 bar of compressed air |
| CONSUMPTION | Approx: 24 liters/cut at 7 bar |
